Overview

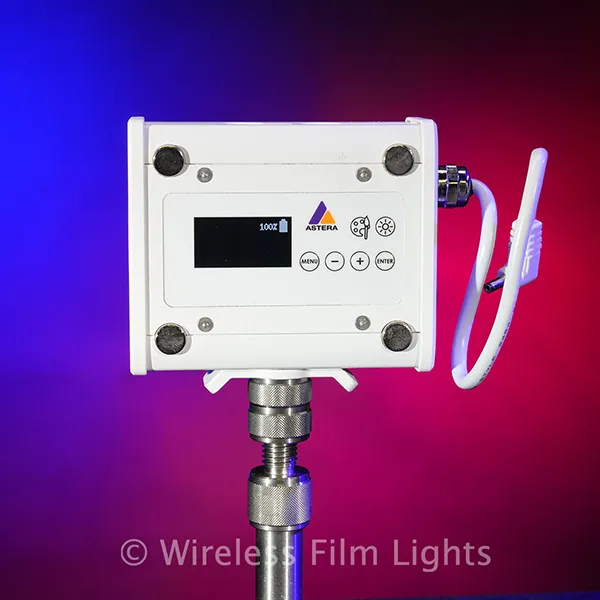

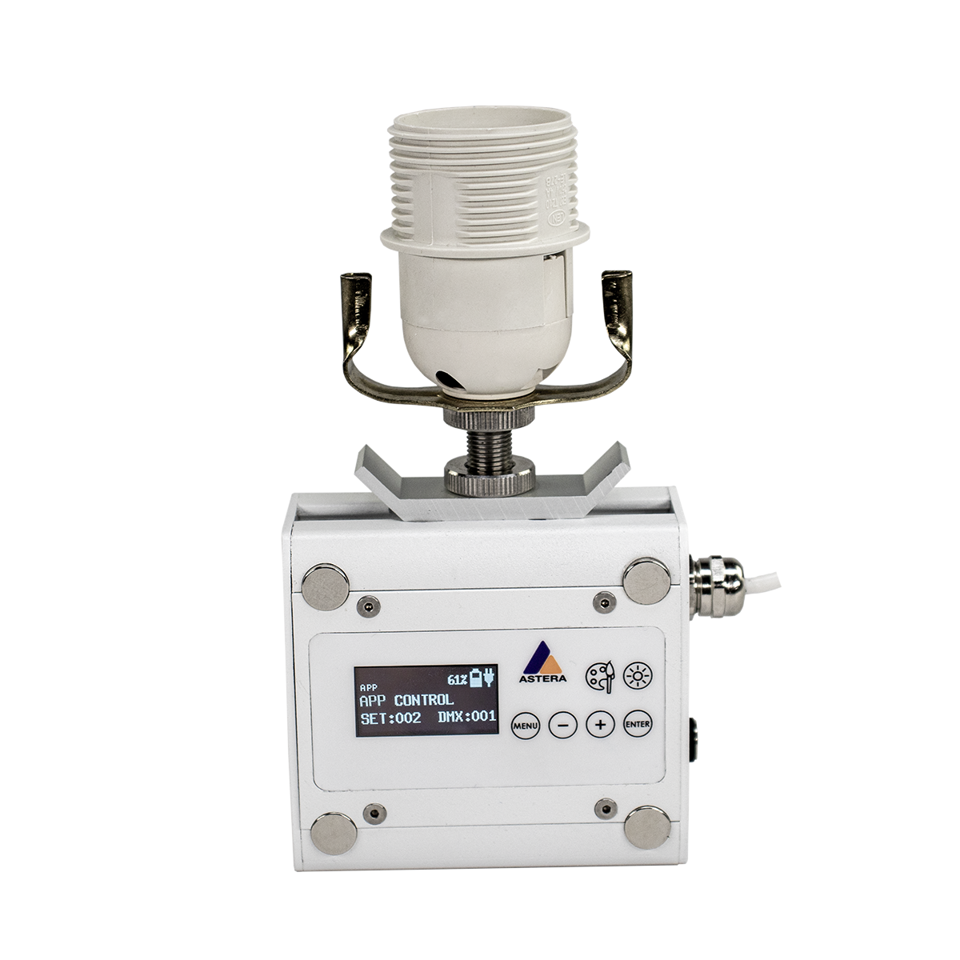

The Astera PowerStation is a versatile accessory designed to enhance the functionality of the Astera NYX Bulb. Serving both as a battery pack and a control interface, it allows for flexible power options and precise programming of your lighting setup.
Dual Functionality
- Battery Pack: Equipped with a 3350 mAh lithium-ion battery, the PowerStation can power a NYX Bulb for up to 20 hours, with approximately 3.25 hours at maximum brightness. It charges via a 24–48V DC input and delivers a 10.8V DC output.
- Control Interface: While connected, the PowerStation acts as an external display, enabling you to set DMX addresses, colors, effects, brightness, and runtime. These settings are stored in the NYX Bulb’s memory for consistent performance, even after disconnection.
Mounting Options
Designed for adaptability, the PowerStation offers multiple mounting solutions:
- Integrated Magnets: Attach directly to metal surfaces for quick setups.
- Airline Track: Compatible with accessories like the TrackPin and PowerStation Hanger for secure rigging.
Specifications
- Battery Capacity: 3350 mAh / 10.8V
- Runtime: Up to 20 hours (3h 15min at max brightness)
- Charging Time: Approximately 5 hours
- DC Input: 24–48V DC
- DC Output: 10.8V DC
- Dimensions: 96 x 80.8 x 42.4 mm (3.8″ x 3.2″ x 1.7″)
- Weight: 0.4 kg (0.89 lbs)
- Operating Temperature: 0–40°C (32–104°F)
- IP Rating: IP20
Compatibility
– Designed specifically for the Astera NYX Bulb.
Note
For optimal performance, ensure the PowerStation is charged and operated within the specified temperature range. Accessories like the TrackPin and PowerStation Hanger are available separately to expand mounting options.
