Overview
The Astera PowerBox (Power Box) 2 × 86 W supplies power and wired data connectivity for Astera 24 V fixtures including Pixel Brick and Hydra Panel systems. With two independent 86 W outputs, the unit supports charging or installation workflows while providing wired control via DMX, Art-Net, or sACN.
Power and data are delivered through Astera Power/Data Combination Cables, allowing fixtures to receive both 24 VDC power and DMX control through a single cable.
The PowerBox is commonly used in Pixel Brick and Hydra Panel charging cases as well as permanent installations where wired control and continuous power are required.
Key Features
- Two 86 W DC outputs for powering or charging fixtures
- Supports Pixel Brick and Hydra Panel systems
- Integrated wired data input: DMX, Art-Net, and sACN
- Compatible with Astera Power/Data Combination Cables
- Suitable for charging cases or permanent installations

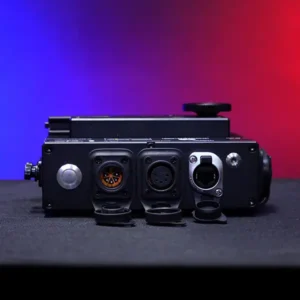

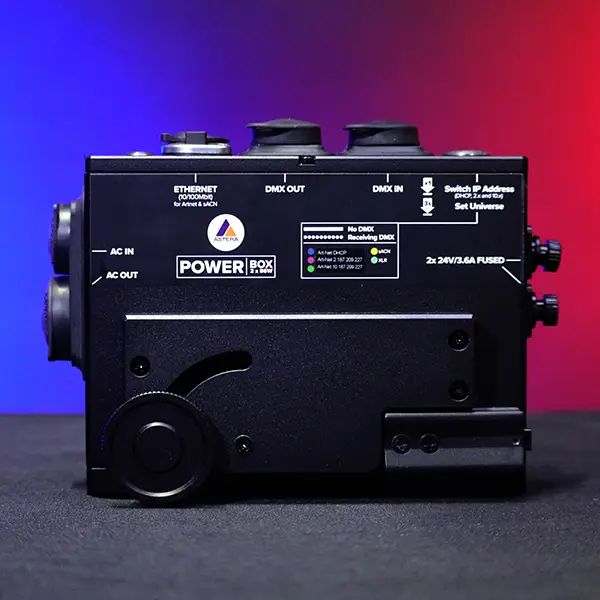

Connections
- 5-pin XLR DMX input and output
- Ethernet port for Art-Net and sACN

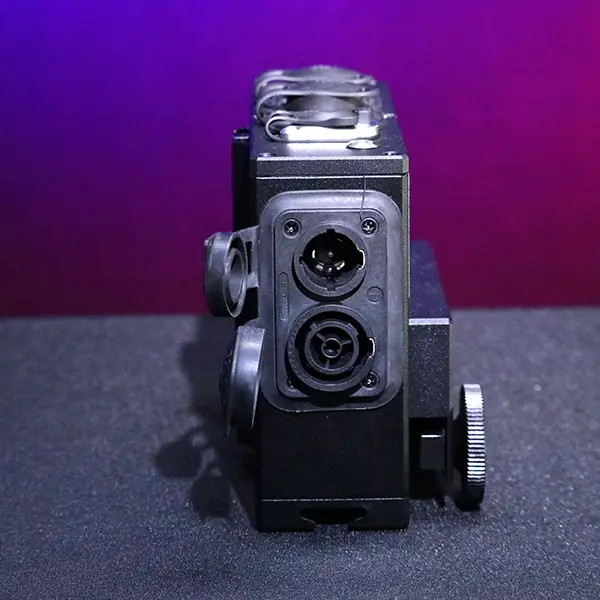

- PowerCON TRUE1 AC input and output
- Two 24 VDC power/data output ports
Mounting Options

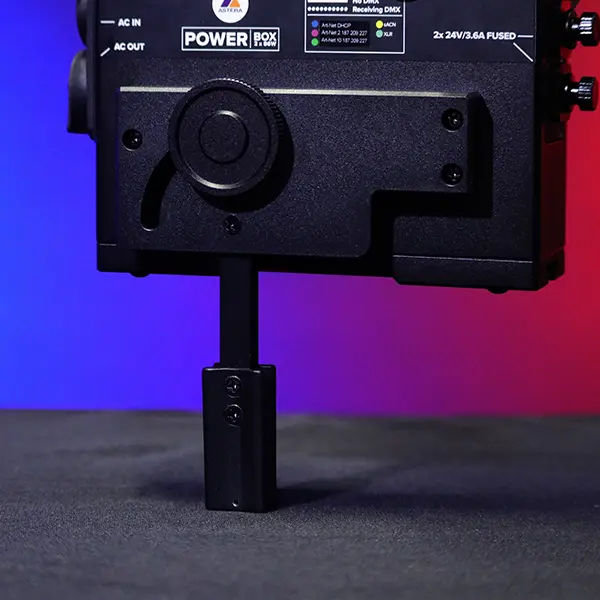

- Fold-out BrickConnect mounting bracket
- Airline track
- M5 threaded mounting points
- 3/8″-16 UNC mounting thread
Included

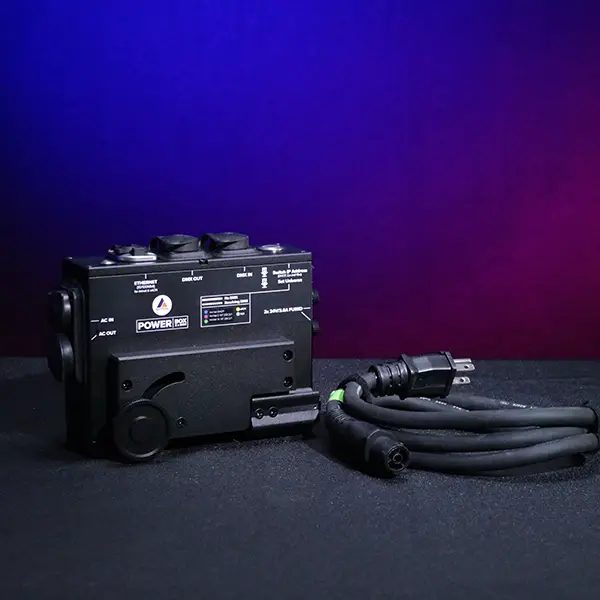

- 1 × PowerBox 2 × 86 W (PWB-2-86)
- 1 × PowerCON TRUE1 cable
- 2 × Waterproof DC socket covers (PB15-PLG)
