Overview

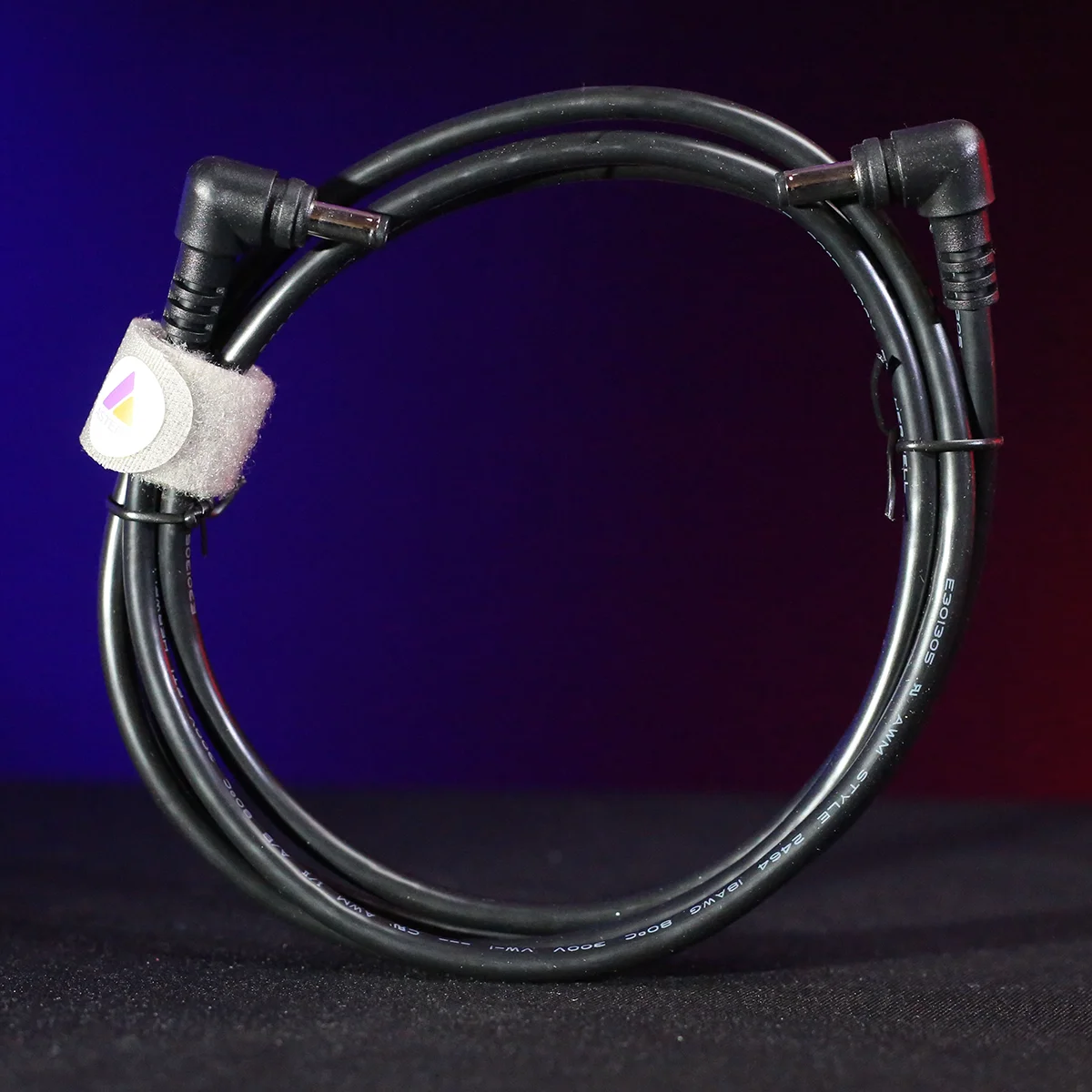

The Astera Power/Data Combination Cable – 1.5 m (4-Pack) (PWB-CAB-1.5) delivers both 24 VDC power and DMX data to compatible Astera fixtures through a single cable. Its extended length makes it suitable for installations requiring additional reach while maintaining clean, consolidated wiring.
Key Features
- 1.5 m hybrid power/data cable for Astera lighting systems
- Delivers both 24 VDC power and DMX through a single connection

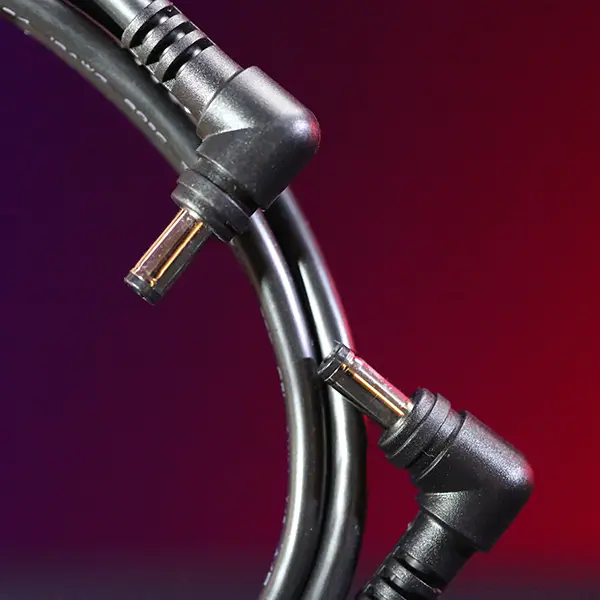

- 90° molded connectors designed for secure, low-profile connections
- Supports daisy-chaining of compatible fixtures
- Designed for use with Astera PowerBox systems
Kit Contents
- 4 × 1.5 m Power/Data Combination Cables (PWB-CAB-1.5)
Compatible Fixtures
- Pixel Brick
- Hydra Panel
- Pluto Fresnel
- PowerBox 2x86W
- Titan PowerBox
- Runtime Extender systems
- DataLink
Weather Resistance
- Provides IP65-rated connection when used with Hydra Panel, Pixel Brick, or PowerBox 2x86W
- Provides IP55-rated connection when used with Pluto Fresnel
- Other compatible fixtures do not achieve a sealed IP rating with this cable
Usage Notes
- Ideal for medium-length runs between fixtures and PowerBox systems
- Useful in studio, event, and installed environments requiring flexible cable routing
- Maintains compatibility across newer Astera fixture systems
