Overview

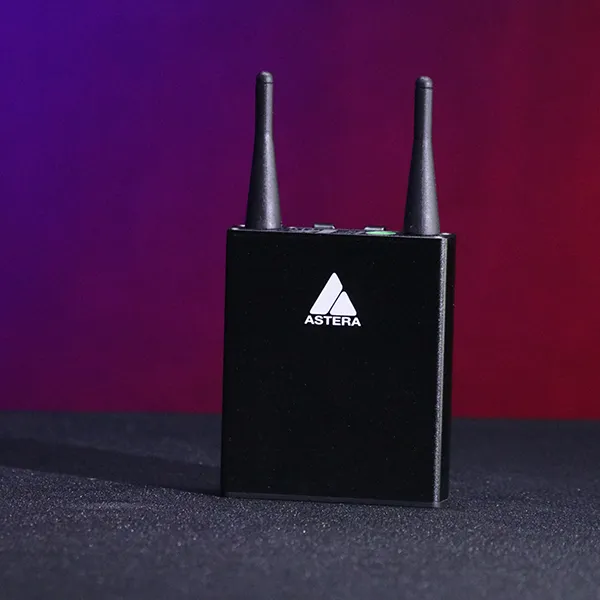

The Astera ART7 AsteraBox is a compact, battery-powered interface that bridges the AsteraApp with your lighting fixtures. Acting as both a Bluetooth bridge and a CRMX transmitter, it facilitates seamless wireless control and configuration of Astera lights.
Key Features
- Bluetooth Bridge: Connects the AsteraApp to your lights, enabling remote control, setup, and monitoring.
- CRMX Transmitter: Transmits wireless DMX signals to Astera and other CRMX-compatible lights using LumenRadio’s technology.
- Built-in Battery: Offers up to 72 hours of runtime for app control and 8–10 hours for CRMX transmission.
- Compact Design: Lightweight and portable, with a belt clip for easy attachment during on-the-go operations.
Specifications
- Order Code: ART7-U
- DC Input: 5 VDC – 2 A
- Battery Voltage: 3.7 V
- Battery Runtime: 72 h (App), 8–10 h (CRMX)
- Charging Time: 8 hours
- Ports: Micro-USB for charging, 3.5 mm jack for DMX Input
- Wireless Protocols: UHF, CRMX, Bluetooth 4.0
- Wireless Range: CRMX: up to 300 m / 328 yds; Bluetooth: up to 3 m / 3.3 yds
- Housing Material: Aluminium
- IP Rating: IP20
- Operating Temperature: 0 – 40 °C / 32 – 104 °F
- Weight: 0.23 kg / 0.51 lbs
- Dimensions: 146 mm x 78 mm x 30 mm / 5.7″ x 3.1″ x 1.2″
What’s in the Box
- 1x AsteraBox (ART7)
- 1x DMX Adapter (ART7-DMXA)
- 1x Power Supply (ART7-CHR-U)

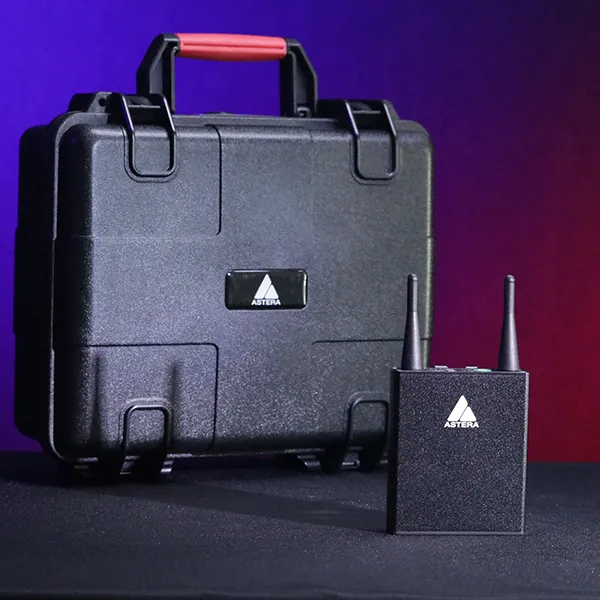

- 1x Carry Case (ART7-CSE)
Compatibility
Compatible with all Astera lights that support app control and CRMX wireless DMX, including:
- Titan Tube
- Helios Tube
- Hyperion Tube
- AX Series
- NYX Bulb
- PixelBrick
- HydraPanel
